Automated Plastic Film Blowing Machine For PVC Heat Shrink Film SJ45*25-Sm500

Product thickness 0.025-0.07mm PVC heat Shrink film blowing machine-SJ45*25-sm500

Technical Data:

1. Unit-type:SJ45-Sm500

2. Extruder-type : SJ45x25B

3. Screw diameter : Φ45mm

4. Screw radio :25:1 L/D

5. Driving motor :11KW

6. Heating power : 9KW

7. Die diameter : Φ30-Φ50mm

8. Width : 100-400mm

9. Thickness : 0.025-0.07mm

10. Output : 20-40kg/h

FAQ:

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.

Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.

CHARACTERISTIC:

1. Frequency inverters control main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl-A after nitrogen treatment, Supplied from Zhoushan city.
3. Gear box: HARD teeth gear surface, casting alloy piston, high precise grinding.
4. Die material: steel No.45 high hardness material, hard chrome- plating, mirror surface channel.
5. Double digital display automatic temperature controller
6. Machine passed CE certification, and our factory passed ISO certification, quality guaranteed.
7. For more machine functions, we have rotary die head, double stations rewinder, corona treatment, auto feeding, and auto.film roll changer rewinder for option. Etc.

plastic blown film machine

mini film blowing machine

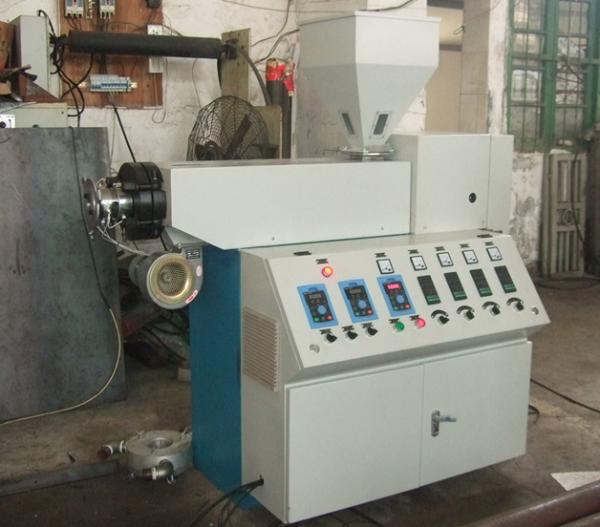

Automated Plastic Film Blowing Machine For PVC Heat Shrink Film SJ45*25-Sm500 Images
